Luxury Style 1.5*1.5 m Electronic Weight Scale 1000kg 2000kg 3000kg 5000kg Customized for Heavy Industry Weighing Scales

Price : $263.16/sets 1-9 sets

Place of Origin : Hunan China

Brand Name : OEM

Certification : ISO,CE,ROHS,FCC,OIML

Model Number : OEM

MOQ : 100

Delivery Time : 5-8 business days

Payment Terms : T/T,Western Union

Supply Ability : 100 pieces per day

warranty : 6 Months

customized support : OEM, Software reengineering, ODM, OBM

place of origin : Guangdong, China

brand name : Toledo

model number : Platform floor scale

type : Truck Scale, Livestock Scale

display type : LCD/LED

style : luxury

Power Supply : 110-240AC/DC

Operating Temperature : 0°C to 40°C

Model : TCS Series Platform Scale,ACS Series Price Scale

Material : Stainless Steel,Carbon Steel

Platform Size : 400mm x 500mm, 500mm x 600mm, 600mm x 800mm, 800mm x 1000mm,100*100cm,120*120cm,150*150cm

Capacity : 60kg, 100kg,150kg,200kg, 300kg, 600kg, 1000kg, 1500kg,3000kg

Communication : RS232, RS485, USB, Ethernet,Bluetooth,wifi,3G,4G,5G,LoraLAN

Storage Temperature : -25°C to 55°C

Display Resolution : 1/3000, 1/6000, 1/15000, 1/30000

Certifications : CE, OIML, NTEP, ISO,CE,ROHS,FCC

Functions : Tare, Zero, Accumulation, Counting, Checkweighing, Hold

Accuracy : 0.1kg, 0.2kg, 0.5kg, 1kg, 2kg, 5kg

Display : LED/LCD

Units Of Measure : kg, lb, oz, g

Power Source : Rechargeable Battery

Contact Now

Luxury Style 1.5*1.5 m Electronic Weight Scale 1000kg 2000kg 3000kg 5000kg Customized for Heavy Industry Weighing Scales

Weighing floor scales are perfect for accurate weighing solution that combines a basic scale platform and indicator. Ideal for loading docks and general-manufacturing facilities, the scale platform features a nonslip tread-plate surface that provides safe footing. The indicator handles a variety of weighing operations, including simple weighing, tare weighing, counting, and accumulation. It can provide accurate, reliable weighing.

Introduction

1). Q235 carbon steel material

2). 8mm thickness steel platform, 4 U-beams bottom supports

3). XK3190-A12 weighing indicator
4). scale body with RS232 interface, can match any digital indicator with RS232 plug
5). 4 digital load cells, which can be replaced individually

6). load cells are with degree-adjustable feet

7). ramp is optional

8). easy to move by forktruck

9). spray paint / powder coating are as required
10). flat plate / anti-skid surface are as required

We offer meters in two types: the white type, which has a locking mechanism to ensure a stable weighing reading that is not affected by the movement of the object; Black font, advantage in its sensitivity and clear reading display.

Attention! White instrument display

We show you the reading process of the white instrument, if you are interested, you can contact us to buy!

(Our livestock scale can be used as a platform scale, if the fence is demounted, you can also contact us if you are interested!)

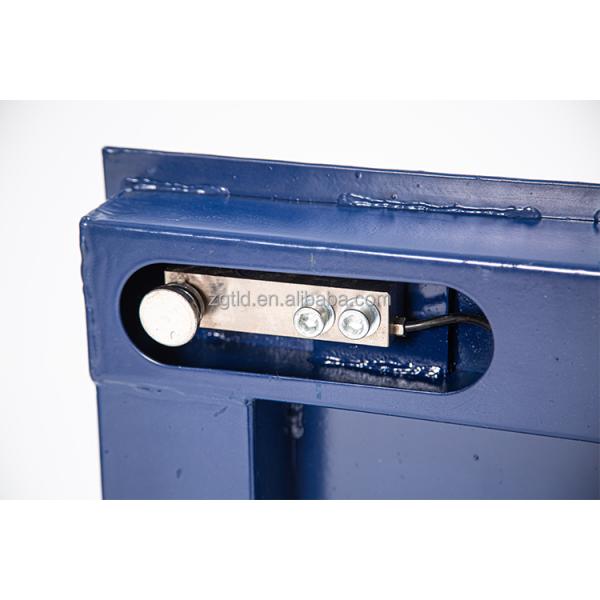

High quality sensitive sensor for accurate weight recognition. Evenly distributed in the four corners, can ensure the accuracy of weighing data.

Install feet to load cells

Cable with plug is under crossbeam

Connect plug to indicator

Floor Scale Series

Accuracy class	OIML III
Certificate	ISO
Power supply	AC220V (±10%), 50-60Hz
Working temperature	-10~+40℃
Working humidity	<95%
Standard fitting	1pc platform,4pcs load cell, 1pcs junction box, 1pcs weighing indicator, 5m signal wire, 4 scale feet
Optional fitting	ramp

Model	Capacity	Division	Platform Size(m)
LN-1	1T	1KG	0.8x0.8m,1.0x1.0m,1.0x1.2m,1.2x1.2m,1.2x1.5m,1.5x1.5m, 1.5x2.0m,2.0x2.0m
LN-2	2T	2KG
LN-3	3T	3KG
LN-5	5T	5KG	1.5X2.0m,2.0x2.0m
LN-10	10T	10KG	1.5X2.0m,2.0x2.0m

Packing & Delivery

Usual pack: packed with bubble wrap and in carton.

Customized is available.

Lead time: 15 days for less than 300 pieces.

Once the product arrives, you can assemble it yourself, and the process is very simple.
